Precise, powerful, and easy to use

The Agilent HLD MR30 mobile helium leak detector is both a precise instrument and a robust workhorse, featuring an easy-to-use touch screen interface and menu structure that quickly connects users to powerful leak detection capabilities. Built-in application setups shorten test cycles and can be saved to assure repeatability.

It is easily rolled to convenient locations on its four wheels. The enclosed primary vacuum pump is the Agilent DS 602, with a pumping speed of 30 m3/hour.

The HLD MR30 was designed to bring unprecedented ease to the optimization of leak detection performance for any application—no more guessing, wasted time, or costly mistakes.

Features

• Six different application setup guides help you correctly configure your instrument for the best performance, ensuring that parameters are properly set for a thorough and efficient test.

• Larger, more durable and responsive touch screen interface rotates 180° for ideal viewing.

• Cleaner, more intuitive user interface. Immediate access to frequently used features and a flat menu structure allow you to quickly find the setting you need.

• Startup wizard helps user set up the instrument on first-time power-up.

• Enhanced charting capabilities: Zoom for closer inspection of data, color-coded setpoints, and time-based plot records for leak rate and pressure.

• A large work surface provides plenty of room for parts to be tested, tools, etc.

• Improved power-off process keeps spectrometer under vacuum and protects the turbomolecular pump.

• Improved maneuverability for easier access to narrow service areas and chases in semiconductor fabs or other production environments.

• Dry vacuum pump eliminates the risk of oil contamination of test parts and systems.

Easy navigation via the large touch screen interface

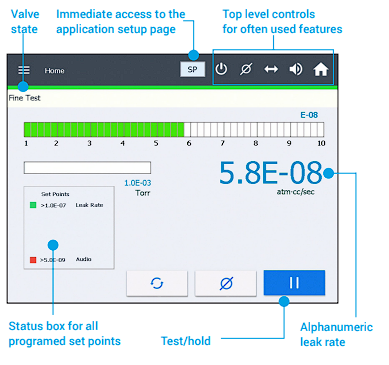

Test status view

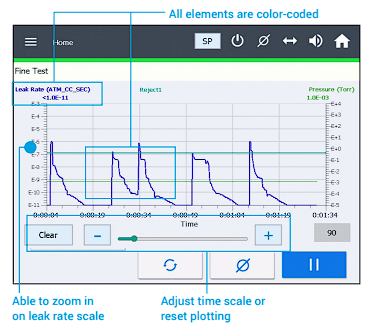

Chart view

HLD Series Specifications

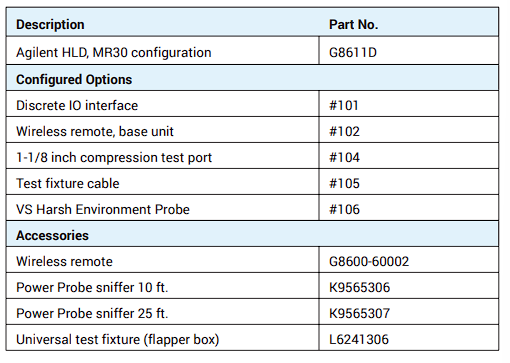

Ordering information

Agilent has a global network of service professionals and a wide array of support options that will:

– Protect your investment

– Maximize your productivity

– Ensure your instrument is fully compliant with industry regulations

HLD Series Helium Leak Tester Model

         PR02,PD03 Helium Leak Tester        BR15,30/BD15,30 Helium Leak Tester          MR15,30/BD15,30 Helium Leak Tester

                                                                             (External Pump)                               (External Pump + Removable Case)
